Details

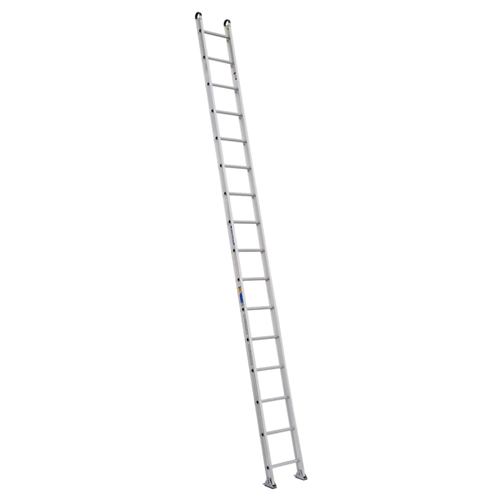

The 500-1 series are one-section round rung straight ladders with a duty rating of 375 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance every time. The side rails are extra heavy duty I-beam rails and the aluminum round rungs are deeply serrated for slip resistance. The duty rating goes to 300 pounds with the 18', 20' and 24' lengths.
Specifications
Size: 16'
Reach Height: 19'
Load Capacity: 375 lbs.
Type: Type IAA Duty Rating
Material: Aluminum
Rung Type: Round
Foot Material: Slip-resistant pad
Number of Sections: 1
Certifications: ANSI A14.2 (2007); OSHA
Approx. Cu. Ft. Per Unit: 5.7
Approx. Shipping Wt. Lbs.: 37
Dimensions
Rails Dimension: 3"
Flange Dimension: 1-1/4"
Rung Dimension: 1-1/4"
Base Width: 16-7/8"
| Model No. | Size | Reach Height | Load Capacity | Type | Approx. Cu. Ft. Per Unit |
| 508-1 | 8' | 11' | 375 lbs. | Type IAA Duty Rating | 2.9 |
| 510-1 | 10' | 13' | 375 lbs. | Type IAA Duty Rating | 3.6 |
| 512-1 | 12' | 15' | 375 lbs. | Type IAA Duty Rating | 4.3 |
| 514-1 | 14' | 17' | 375 lbs. | Type IAA Duty Rating | 5 |
| 516-1 | 16' | 19' | 375 lbs. | Type IAA Duty Rating | 5.7 |
| 518-1 | 18' | 20' | 300 lbs. | Type IA Duty Rating | 6.4 |
| 520-1 | 20' | 22' | 300 lbs. | Type IA Duty Rating | 7.1 |
| 524-1 | 24' | 26' | 300 lbs. | Type IA Duty Rating | 14 |
