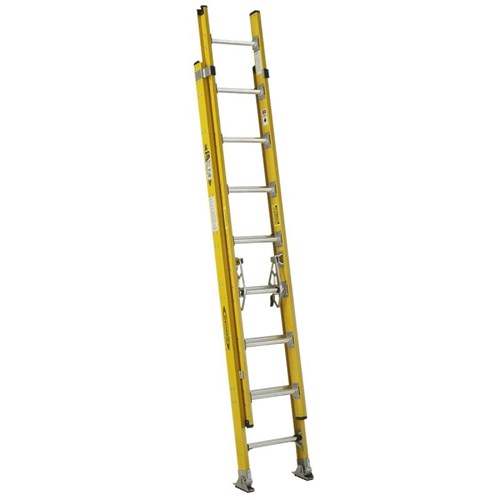

16' Type IAA Fiberglass D-Rung Extension Ladder

D7116-2

Werner Co.

The D7100-2 extension ladders boast a duty rating of 375 pounds and feature the exclusive ALFLO rung joint that guarantees TWIST-PROOF peformance.

Quick Overview

    Features include:

  • Exclusive ALFLO Rung Joint Means TWIST-PROOF Performance
  • 1-5/8" Slip-resistant TRACTION-TRED D-rungs
  • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
  • Slip-resistant Traction-Tred D-rungs
  • Pre-pierced holes for easy field installation of accessories
  • Durable rail shield and shoe bracket protects rail from damage
  • Dual action feet with slip-resistant pad and spur plate for use on hard or penetrable surfaces
  • Mar-Resistant Molded End Caps
  • Ideal for utility and telecommunication industries
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details

The D7100-2 extension ladders boast a duty rating of 375 pounds and feature the exclusive ALFLO rung joint that guarantees TWIST-PROOF peformance. External guides at top of base section help secure the interlocking siderails. Pre-pierced holes at the top of the fly section allow for easy field installation of accessories. The plate and rung assembly are riveted at four points to each side rail. The TRACTION-TRED D rungs are slip resistant and the durable rail shield and shoe bracket protects the rail from damage. (36' & 40' versions rated at 300 pounds and do not have interlocking rails)


Specifications

  • Size: 16'
  • Reach Height: 16'
  • Max Working Length: 13'
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 star
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 7
  • Approx. Shipping Wt. Lbs.: 41

    • Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-5/8"
  • Fly Width: 16-1/8"
  • Base Width: 19" outside shoes

    • Additional D7100-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D7116-216'16'13'375 lbs.Type IAA Duty Rating
    D7120-220'19'17'375 lbs.Type IAA Duty Rating
    D7124-224'23'21'375 lbs.Type IAA Duty Rating
    D7128-228'27'25'375 lbs.Type IAA Duty Rating
    D7132-232'31'29'375 lbs.Type IAA Duty Rating
    D7136-236'34'32'300 lbs.Type IA Duty Rating
    D7140-240'37'35'300 lbs.Type IA Duty Rating

    Additional Information

    Manufacturer: Werner Co.
