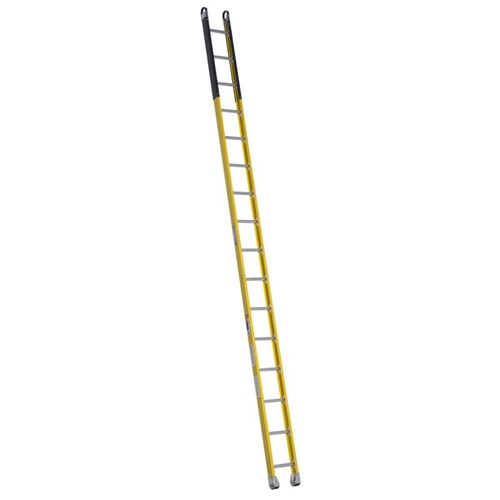

16' Type IAA Fiberglass Manhole Ladder

M7116-1

Werner Co.

The M7100-1 Manhole ladders feature 3' replaceable plastic sleeves that protect the upper rails from manhole damage. These sleeves increase the longevity of the ladder.

Quick Overview

    Features include:

  • Narrow 12-3/8" width design is ideal for special purposes like work in manholes
  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • Mar-resistant, vinyl coated aluminum hoop end caps for removing ladder from manhole
  • 3' replaceable plastic sleeves to avoid manhole rim damage to rail
  • Slip-resistant TRACTION-TRED round rungs
  • Combination rail shield and shoe protects bottom of rail from damage
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details

The M7100-1 Manhole ladders feature 3' replaceable plastic sleeves that protect the upper rails from manhole damage. These sleeves increase the longevity of the ladder. The combination rail shield and shoe protects the bottom of the rails from damage. The exclusive ALFLO rung joint means TWIST-PROOF performance, and these ladders also have a duty rating of 375 pounds. The vinyl coated aluminum hoop end caps are ideal for easily removing the ladder from the manhole. The TRACTION-TRED round rungs are slip resistant.


Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/4"
  • Base Width: 12-3/8" outside shoes

    • Specifications

  • Size: 16'
  • Reach Height: 18'
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Fiberglass
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 1
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 5.9
  • Approx. Shipping Wt. Lbs.: 39.5

    • Additional M7100-1 Series Models:
    Model No.SizeReach Height Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    M7108-18'11'320
    M7110-110'13'3.724
    M7112-112'15'4.428
    M7114-114'17'5.232
    M7116-116'18'5.939.5

    Additional Information

    Manufacturer: Werner Co.
