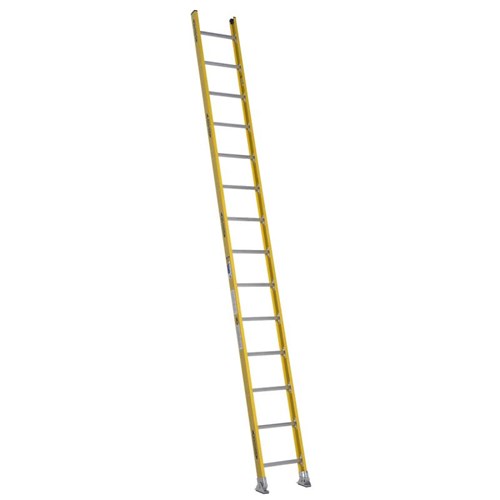

14' Type IAA Fiberglass Round Rung Straight Ladder

7114-1

Werner Co.

The 7100-1 ladders are one section straight ladders made with non-conductive fiberglass rails. Easy to transport and maneuver, these ladders bear a duty rating of 375 pounds making them durable and long lasting. The slip-resistant, TRACTION-TRED rungs are round, and the durable rail shields and shoe brackets help to protect the rails from damage. The plate and rung assemblies are riveted at four points to the side rails.

Quick Overview

    Features include:

  • Exclusive ALFLO Rung Joint Means TWIST-PROOF Performance
  • 1-1/4" Slip-resistant TRACTION-TRED round rungs
  • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
  • Rugged, heavy duty extruded rung locks are spring loaded to operate smoothly
  • Pre-pierced holes for easy field installation of accessories
  • Durable rail shield and shoe bracket protects rail from damage
  • Dual action feet with slip-resistant pad and spur plate for use on hard or penetrable surfaces
  • Mar-Resistant Molded End Caps
  • Ideal for utility and telecommunication industries
  • Shoe with slip-resistant pad and spur plate
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/4"
  • Fly Width: 16-13/16"
  • Base Width: 18-1/16" outside shoes

  • Specifications

  • Size: 14'
  • Reach Height: 17'
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Fiberglass
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 1
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 7.6
  • Approx. Shipping Wt. Lbs.: 32

  • Additional 7100-1 Series Models:
    Model No.SizeReach Height Approx. Cu. Ft. Per UnitApprox. Shipping Wt. Lbs.
    7108-18'11'4.520
    7110-110'13'5.524
    7112-112'15'6.528
    7114-114'17'7.632
    7116-116'18'8.640
    7118-118'21'12.552
    7120-120'23'13.958

    Additional Information


    Manufacturer: Werner Co.
