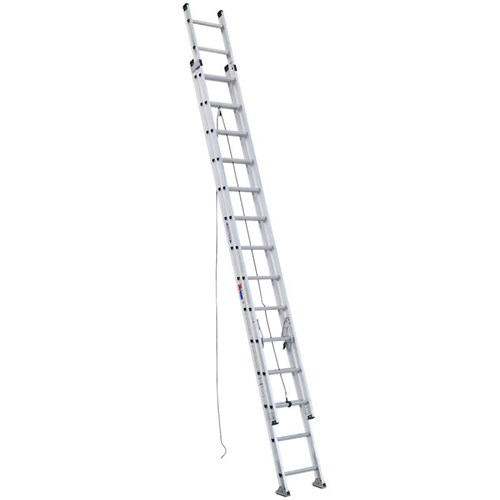

28' Type IA Aluminum D-Rung Extension Ladder

D1528-2

Werner Co.

The D1500-2 series aluminum extension ladders have a duty rating of 300 pounds and have extra heavy duty I-beam side rails. The base and fly sections separate easily and can be used separately. Guide brackets help to ease operation when raising and lowering the fly section. The exclusive ALFLO rung joint means TWIST-PROOF performance every time. TRACTION-TRED D rungs are slip resistant, and the rugged shoes rest flat or are held in spur position with the SHU-LOK feature. Rugged spring-loaded locks operate smoothly. Mar-resistant end caps protect the surface ladder is resting against.

Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-3/4" Slip-resistant Traction-Tred D-rungs
  • Heavy Duty extruded rung locks are spring loaded to operate smoothly
  • Base and fly separate easily for use as an extension or two single sections
  • Smooth operating pulley design – enclosed shape protects pulley
  • Guide brackets mounted at the top and bottom of the rail for durability and smooth operation of fly section
  • Extra heavy duty I-beam rails
  • Rugged spring loaded locks operate smoothly
  • Rugged shoe rests flat or is held in spur position with SHU-LOK feature
  • Stacked rail design provides increased rung width on fly section
  • Mar-resistant end caps
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3"
  • Flange Dimension: 1-1/8"
  • Rung Dimension: 1-3/4"
  • Fly Width: 18-1/8"
  • Base Width: 18-1/8" outside rails

  • Specifications

  • Size: 28'
  • Reach Height: 27'
  • Max Working Length: 25'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating: 4 Star
  • Material: Aluminum
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 10.7
  • Approx. Shipping Wt. Lbs.: 56

  • Additional D1500-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D1516-216'16'13'6.230.5
    D1520-220'20'17'7.737
    D1524-224'23'21'9.245
    D1528-228'27'25'10.756
    D1532-232'31'29'12.267
    D1536-236'34'32'13.780
    D1540-240'37'35'15.289.5

    Additional Information


    Manufacturer: Werner Co.
