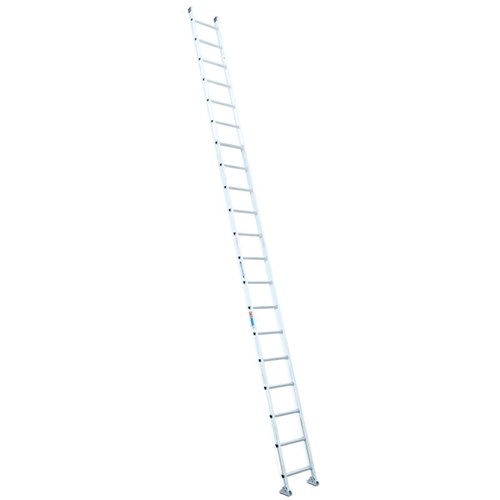

20' Type IA Aluminum D-Rung Straight Ladder

D1520-1

Werner Co.

The D1500-1 series are one-section aluminum straight ladders with a duty rating of 300 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance every time. The side rails are extra heavy duty I-beam rails and the aluminum D Traction-Tred rungs are slip resistant. The rugged shoe rests flat or is held in spur position with the Shu-Lok feature for use on hard or penetrable surfaced.

Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-3/4" Slip-resistant Traction-Tred D-rungs
  • Heavy Duty extruded rung locks are spring loaded to operate smoothly
  • Extra heavy duty I-beam rails
  • Rugged spring loaded locks operate smoothly
  • Rugged shoe rests flat or is held in spur position with Shu-Lok feature
  • Stacked rail design provides increased rung width on fly section
  • Mar-resistant end caps
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3"
  • Flange Dimension: 1-1/8"
  • Rung Dimension: 1-3/4"
  • Base Width: 18-1/8" outside rails
  • :

  • Specifications

  • Size: 20'
  • Reach Height: 22'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating:4 Star
  • Material: Aluminum
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 1
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 8.9
  • Approx. Shipping Wt. Lbs.: 43.5

  • Additional D1500-1 Series Models:
    Model No.SizeReach Height Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D1508-18'11'3.614.5
    D1510-110'13'4.517.5
    D1512-112'15'5.421.5
    D1514-114'17'6.227
    D1516-116'18'7.132.5
    D1518-118'20'838.5
    D1520-120'22'8.943.5

    Additional Information


    Manufacturer: Werner Co.
