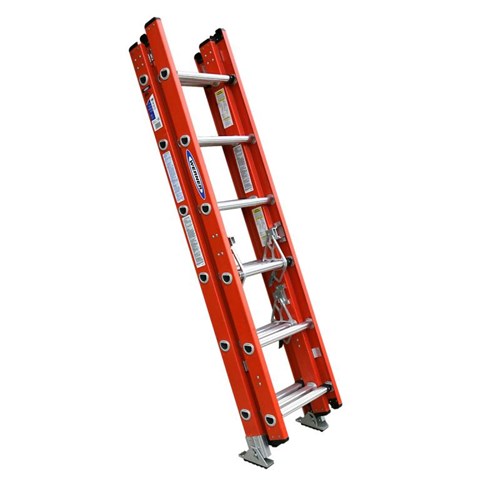

16' Type IA Fiberglass D-Rung Extension Ladder

D6216-3

Werner Co.

The D6200-3 fiberglass extension ladders have non-conductive rails making these ladders ideal for working near electricity. Unique three section design allows the ladder to be stored and transported more easily due to shorter lenght than a 2 section ladder. With a duty rating of 300 pounds, the D6200-3 series is durable and long lasting. The exclusive ALFLO rung joint means TWIST-PROOF performance on the job. The Traction-Tred D rungs are slip resistant and the side rails are interlocking. The dual action feet are for use on hard or penetrable surfaces and swivel easily. The durable rail shield bracket and shoe help protect the bottom of the rail.

Quick Overview

    Features include:

  • Compact 3 section design is 2' shorter than a 2 section ladder when stored
  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-5/8" Slip-resistant Traction-Tred D-rungs
  • Interlocking Side Rails with internal rail guides on bottom of fly section securely connect rails
  • External guides at top of base section securely interlock rails
  • Heavy Duty extruded rung locks are spring loaded to operate smoothly
  • Combination Rail Shield Bracket and Shoe with Shu-Lok and Slip-Resistant Pad
  • Molded Rung Braces on bottom step for increases durability
  • Mar-Resistant Molded End Caps
  • Ladder is consided 18' by ANSI standards
  • Ladder extends to 13' working height, same as D6216-2
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-5/8"
  • Fly Width: 17-3/4"
  • Base Width: 18-3/4" outside shoes

  • Specifications

  • Size: 16'
  • Reach Height: 16'
  • Max Working Length: 13'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating: 4 Star
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 3
  • Certifications: ANSIA14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 8.5
  • Approx. Shipping Wt. Lbs.: 40.5

  • Additional D6200-3 Series Models:
    Model No.SizeReach Height Max Working Length CertificationsApprox. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D6216-316'16'13'ANSIA14.5 (2007); OSHA8.540.5
    D6220-320'19'17'ANSI A14.5 (2007); OSHA11.140.5
    D6224-324'23'21'ANSI A14.5 (2007); OSHA12.461
    D6228-328'27'25'ANSI A14.5 (2007); OSHA1574.5
    D6232-332'31'29'ANSI A14.5 (2007); OSHA16.381

    Additional Information


    Manufacturer: Werner Co.
