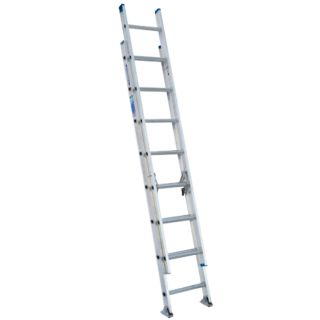

16' Type I Aluminum D-Rung Extension Ladder

D1316-2

Werner Co.

The D1300-2 series aluminum extension ladders have a duty rating of 250 pounds and heavy duty modified I-beam side rails. The Traction-Tred D rungs are slip resistant and the side rails are interlocking. Heavy duty spring-loaded locks operate smoothly. Durable shoes rest flat or are held in spur position with Shu-Lok feature. Mar-resistant end caps help protect the surface ladder is leaning against. Exclusive ALFLO rung joint means TWIST-PROOF performance every time.

Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-3/4" Slip-resistant Traction-Tred D-rungs
  • Heavy Duty extruded rung locks are spring loaded to operate smoothly
  • Mar-resistant end caps
  • Heavy duty modified I-beam side rails
  • Durable shoe rests flat on slip resistent pad or is held in spur position with Shu-Lok feature
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3"
  • Flange Dimension: 1-1/16"
  • Rung Dimension: 1-3/4"
  • Fly Width: 15-1/4"
  • Base Width: 17-3/8" outside rails

  • Specifications

  • Size: 16'
  • Reach Height: 15'
  • Max Working Length: 13'
  • Load Capacity: 250 lbs.
  • Type: Type I Duty Rating
  • Performance Rating: 3 Star
  • Material: Aluminum
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 5.8
  • Approx. Shipping Wt. Lbs.: 26

  • Additional D1300-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D1316-216'15'13'5.826
    D1320-220'19'17'7.232.5
    D1324-224'23'21'8.640
    D1328-228'27'25'1050.5
    D1332-232'31'29'11.563.5
    D1336-236'34'32'1377.5
    D1340-240'37'35'14.485.5

    Additional Information


    Manufacturer: Werner Co.
