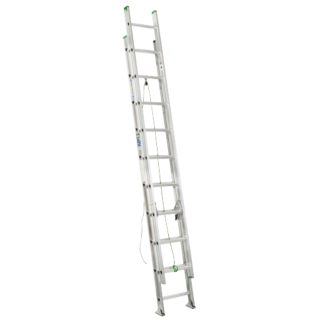

20' Type II Aluminum D-Rung Extension Ladder

D1220-2

Werner Co.

The D1200-2 series aluminum extension ladders have a duty rating of 225 pounds and interlocking side rails. The Traction-Tred D rungs are slip resistant. Spring-loaded locks operate smoothly for easy operation. Shoes rest flat or are held in spur position with Shu-Lok feature. Mar-resistant end caps help protect the surface ladder is leaning against. Exclusive ALFLO rung joint means TWIST-PROOF performance every time.

Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-3/4" Slip-resistant Traction-Tred D-rungs
  • Durable extruded rung locks are spring loaded to operate smoothly
  • Mar-resistant end caps
  • Smooth operating pulley with polypropylene rope
  • Heavy duty modified I-beam side rails
  • Durable shoe rests flat on slip resistent pad or is held in spur position with Shu-Lok feature
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3"
  • Flange Dimension: 1"
  • Rung Dimension: 1-3/4"
  • Fly Width: 15-1/4"
  • Base Width: 17-3/8" outside rails

  • Specifications

  • Size: 20'
  • Reach Height: 19'
  • Max Working Length: 17'
  • Load Capacity: 225 lbs.
  • Type: Type II Duty Rating
  • Performance Rating: 2 Star
  • Material: Aluminum
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 7.2
  • Approx. Shipping Wt. Lbs.: 27

  • Additional 500-1 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D1216-216'15'13'5.822
    D1220-220'19'17'7.227
    D1224-224'23'21'8.633.5
    D1228-228'27'25'1043
    D1232-232'31'29'11.554
    D1236-236'34'32'1362.5
    D1240-240'37'35'14.473.5

    Additional Information


    Manufacturer: Werner Co.
