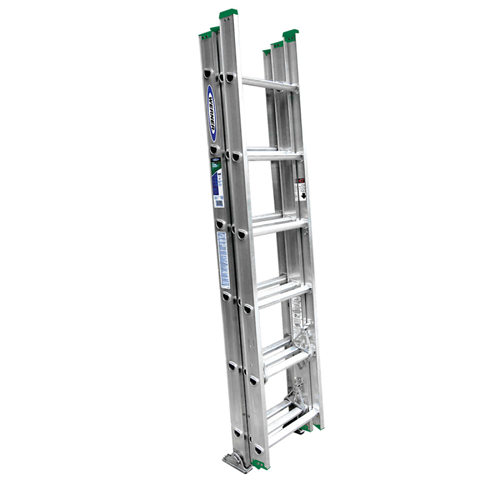

16' Type II Compact Extension Ladder

D1216-3

Werner Co.

The D1200-3 series aluminum extension ladders are Compact, 3 section ladders that have a duty rating of 225 pounds and interlocking side rails. The Traction-Tred D rungs are slip resistant. Spring-loaded locks operate smoothly for easy operation. Shoes rest flat or are held in spur position with Shu-Lok feature. Mar-resistant end caps help protect the surface ladder is leaning against. Exclusive Alflo rung joint means Twist-Proof performance every time

Quick Overview

    Features include:

  • Compact design retracts to 6'3", 2' shorter than a conventional, 2 section, 16' extension ladder
  • Same usable length as a conventional, 2 section, 16' ladder
  • Easy to maneuver around corners and through doors
  • Versatile - Use indoors or outdoors
  • More overlapping rung locations for improved foot comfort
  • Convenient carry handle
  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1.75" Slip-resistant Traction-Tred D-rungs
  • Durable extruded rung locks are spring loaded to operate smoothly
  • Mar-resistant end caps
  • Heavy duty modified I-beam side rails
  • Durable shoe rests flat on slip resistent pad or is held in spur position with Shu-Lok feature
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3"
  • Flange Dimension: 1"
  • Rung Dimension: 1-3/4"
  • Fly Width: 15-1/4"
  • Base Width: 17-3/8" outside rails

  • Specifications

  • Size: 16'
  • Reach Height: 15'
  • Max Working Length: 13'
  • Load Capacity: 225 lbs.
  • Type: Type II Duty Rating
  • Performance Rating: 2 Star
  • Material: Aluminum
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 3
  • Certifications: ANSI A14.2 (2007); OSHA; Special Purpose
  • Approx. Cu. Ft. Per Unit: 5.92
  • Approx. Shipping Wt. Lbs.: 26.5

  • Additional D1200-3 Series Models:
    Model No.SizeReach Height Max Working Length Foot Material Certifications Approx. Cu. Ft. Per Unit
    D1216-316'15'13'Slip-resistant padANSI A14.2 (2007); OSHA; Special Purpose5.92
    D1224-324'23'21'Slip-Resistant padANSI A14.2 (2007); OSHA8.7

    Additional Information


    Manufacturer: Werner Co.
