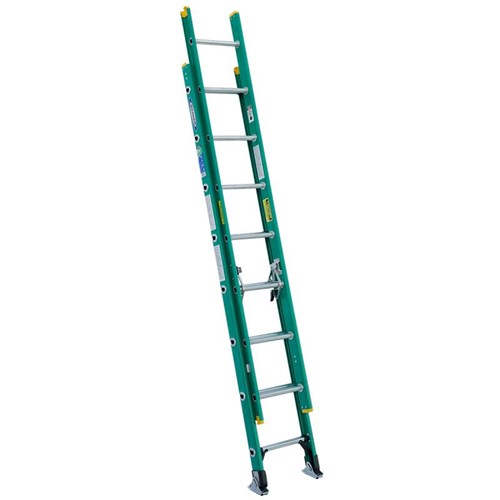

16' Type II Fiberglass D-Rung Extension Ladder

D5916-2

Werner Co.

D5900-2 fiberglass extension ladders feature a rounded rail for improved ergonomics while climbing and carrying. The non-conductive fiberglass rails are interlocking and the exclusive ALFLO rung joint means TWIST-PROOF performance every time. The TRACTION-TRED D rungs are slip resistant. These extension ladders are lightweight for transporting and manuevering yet still have a duty rating of 225 pounds.

Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • Climb and Carry Rail Shape Improves Ergonomics and Comfort for User
  • 1-1/2" Slip-resistant Traction-Tred D-rungs
  • Interlocking Side Rails with internal rail guides for easy extension
  • Durable extruded rung locks are spring loaded to operate smoothly
  • Combination Rail Shield Bracket and Shoe with SHU-LOK and Slip-Resistant Pad
  • Gravity Spring Locks Operate Smoothly
  • Molded Rung Braces on bottom step for increases durability
  • Mar-Resistant Molded End Caps
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/2"
  • Fly Width: 15-1/8"
  • Base Width: 17-3/4" outside shoes

  • Specifications

  • Size: 16'
  • Reach Height: 16'
  • Max Working Length: 13'
  • Load Capacity: 225 lbs.
  • Type: Type II Duty Rating
  • Performance Rating: 2 Star
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 5.9
  • Approx. Shipping Wt. Lbs.: 27

  • Additional D5900-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D5916-216'16'13'5.927
    D5920-220'19'17'7.433
    D5924-224'23'21'8.939

    Additional Information


    Manufacturer: Werner Co.
