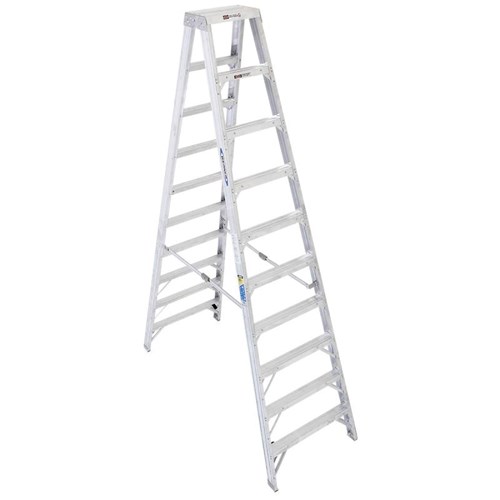

The aluminium Multi-Use Twin Stepladder T400 series has a duty rating of 375 pounds per side making these ladders ideal for one or two-person jobs. The tops are made of heavy gauge extruded aluminum, and the steps are connected with a solid double riveted construction. The extra wide TRACTION-TRED® steps are slip resistant. The bottom steps are braced with full U channel knee braces.
"
Performance Overview "
| Style | Size | Reach Height | Load Capacity | Type |
| Twin | 10' | 14' | 375 lbs. | Type IAA Duty Rating |
Features include:
- Thick side plates
- Heavy gauge aluminum extruded top
- Shoulder bolt and lock nut on top hinge;4 solid aluminum rivets attach top to each rail
- Solid double riveted construction
- Heavy duty external aluminum spreaders on 4' and 6' models; internal spreaders on 8' 10' and 12'
- Slip-resistant TRACTION-TRED® extra wide steps
- Full “U”-channel bracing on bottom steps
- Slip-resistant foot pad
- Design for one or two-person jobs
- Maximum load per side, including person and materials, shall not exceed duty rating of ladder
Interested in this item or want more information?
Hours:
Phone: (301) 773-4700
Email: orders@atlantic-supply.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension: 8-1/4" x 14"
Front Rails Dimension: 3-1/8"
Front Flange Dimension: 1-1/8"
Rear Rails Dimension: 3-1/8"
Rear Flange Dimension: 1-1/8"
Steps Dimension: 3"
Specifications
Size: 10'
Reach Height: 14'
Max. Standing Height: 7'8"
Load Capacity: 375 lbs.
Type: Type IAA Duty Rating
Performance Rating: 5 STAR
Material: Aluminum
Approx. Width: 31-3/4"
Approx. Spread: 78-1/4"
With Pail Shelf: No
Spreader Material: Aluminum
Certifications: ANSI A14.2 (2007); OSHA
Approx. Cu. Ft. Per Unit: 18.7
Approx. Shipping Wt. Lbs.: 55
Additional T400 Series Models:
| Model No. | Size | Reach Height | Max. Standing Height | Approx. Width | Approx. Spread | Approx. Cu. Ft. Per Unit |
| T404 | 4' | 8' | 1'11" | 21-1/4" | 36-1/4" | 5 |
| T406 | 6' | 10' | 3'10" | 24-3/4" | 50-1/4" | 8.8 |
| T408 | 8' | 12' | 5'9" | 28-1/4" | 64-1/4" | 13.3 |
| T410 | 10' | 14' | 7'8" | 31-3/4" | 78-1/4" | 18.7 |
| T412 | 12' | 16' | 9'7" | 35-1/4" | 92-1/4" | 25 |
Additional Information
Manufacturer: Werner Co.
