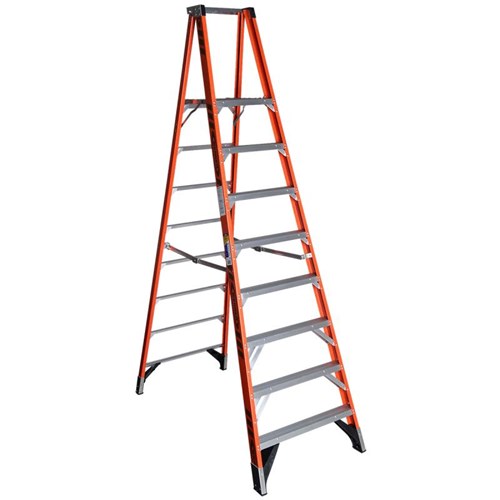

Werner P7400 ladders are rated at 375 pounds and maintain a full set of horizontals on the rear sections. The large work platform provides a secure and comfortable work area while the EDGE bracing system and external rails shields add to the durability of the product. The safety guard rail at the top of the ladder encourages proper ladder use. Fiberglass rails are non-conductive for working near electricity.
"
Performance Overview "
| Style | Size | Reach Height | Load Capacity | Type |
| Platform | 8' | 14' | 375 lbs. | Type IAA Duty Rating |
Features include:
- Safety guard rail encourages proper ladder use
- Back-up plates reinforce all top connectors
- Large platform provides secure and comfortable work area
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- Full set of rear horizontals spaced one per foot
- Slip-resistant TRACTION-TRED extra wide steps are knee-braced and double riveted
- The EDGE bracing system helps to decrease damage to rail
- Glas*Mark Violator stripes on rails allow ladder to be more visible
- Aluminum external rail shield helps protect against abrasion damage
- Slip-resistant foot pads attached to the EDGE structure
- Every rivet backed up by metal, metal plates or washers to protect rails
- Internal aluminum spreaders
Interested in this item or want more information?
Hours:
Phone: (301) 773-4700
Email: orders@atlantic-supply.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Front Rails Dimension: 3-1/8"
Front Flange Dimension: 1-3/16"
Rear Rails Dimension: 1-7/8"
Rear Flange Dimension: 1-3/16"
Steps Dimension: 3"
Platform Depth: 14-5/8" x 15"
Platform Width: 14-5/8" x 15"
Specifications
Size: 8'
Height (Size) to Platform: 8'
Rail Length: 10'
Reach Height: 14'
Max. Standing Height: 7'8"
Load Capacity: 375 lbs.
Type: Type IAA Duty Rating
Performance Rating: 5 Star
Material: Fiberglass
Approx. Width: 34"
Approx. Spread: 66-5/8"
With Pail Shelf: No
Certifications: ANSI A14.5 (2007); OSHA
Approx. Cu. Ft. Per Unit: 12.2
Approx. Shipping Wt. Lbs.: 44.5
Additional 7400 Series Models:
| Model No. | Size | Height (Size) to Platform | Rail Length | Reach Height | Max. Standing Height | Load Capacity |
| P7403 | 3' | 3' | 5' | 9' | 2'10" | 375 lbs. |
| P7404 | 4' | 4' | 6' | 10' | 3'10" | 375 lbs. |
| P7406 | 6' | 6' | 8' | 12' | 5'9" | 375 lbs. |
| P7408 | 8' | 8' | 10' | 14' | 7'8" | 375 lbs. |
| P7410 | 10' | 10' | 12' | 16' | 9'7" | 300 lbs. |
| P7412 | 12' | 12' | 14' | 18' | 11'6" | 300 lbs. |
Additional Information
Manufacturer: Werner Co.
