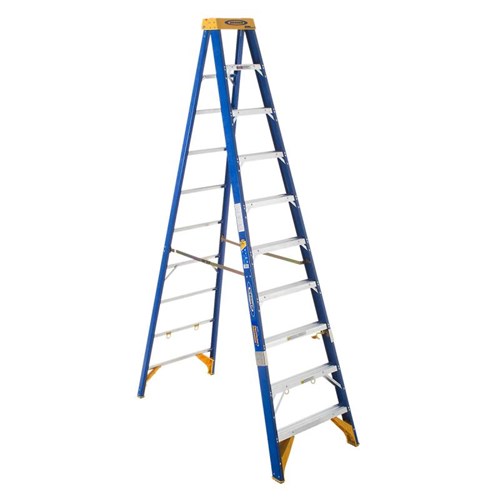

OBEL10 10' Type IAA Fiberglass Electricians JobStation

OBEL10

Werner Co.

The Old Blue Series Electrician's ladder is not your ordinary stepladder -- it's a Jobstation™. These Jobstations™ save time and increase productivity on the job. With a duty rating of 375 pounds, the Old Blue series features customized HolsterTops with ToolLasso sockets to accommodate even more tools. Wire spool holders for both large and small spools and conduit holders with a built-in cutting system make these ladders ideal for electricians. The EDGE bracing system helps to decrease damage to the rail. Fiberglass rails are non-conductive.

Quick Overview

    "Performance Overview "
    StyleSizeReach HeightLoad CapacityType
    Twin10'14'375 lbs.Type IAA Duty Rating

    Features include:

  • Customized HolsterTop with Lock-In System secures tools from falling. 3 ToolLasso included.
  • Full set of rear horizontals spaced one per foot
  • Slip-resistant TRACTION-TRED steps are double riveted and knee-braced
  • Heavy duty internal spreaders
  • The EDGE bracing system helps to decrease damage to rail
  • Shoe pads riveted to the EDGE structure
  • Convenient conduit cutting system
  • HolsterTop customized for electricians
  • Built-in wire spool holders for both large and small spools
  • *Energy Diffusing Geometry
  • Every rivet backed up by metal plate or washer to protect rails
  • The blue and yellow ladder is an exclusive registered trademark of Werner Co
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Top Dimension: 5-3/4" x 13"
  • Front Rails Dimension: 3-1/8"
  • Front Flange Dimension: 1-3/16"
  • Rear Rails Dimension: 1-7/8"
  • Rear Flange Dimension: 1-3/16"
  • Steps Dimension: 3"

  • Specifications

  • Size: 10'
  • Reach Height: 14'
  • Max. Standing Height: 7'8"
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Fiberglass
  • Approx. Width: 30-3/8"
  • Approx. Spread: 65-7/8"
  • With Pail Shelf: No
  • Spreader Material: Steel
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 12.5
  • Approx. Shipping Wt. Lbs.: 41

  • Additional 7400 Series Models:
    Model No.SizeReach HeightReach HeightReach HeightReach HeightMax. Standing Height
    OBEL044'Reach Height1'11"19-7/8"29"3
    OBEL066'3'10"23-3/8"41-1/4"5.3
    OBEL088'8'5'9"26-7/8"53-5/8"8.1
    OBEL1010'10'7'8"30-3/8"65-7/8"12.5
    OBEL1212'12'9'7"33-7/8"78-1/4"15

    Additional Information


    Manufacturer: Werner Co.
