Built to last, the Werner 375-pound duty rated 7400 ladders are rugged and ready for the job. These ladders feature extra heavy duty aluminum HolsterTops, internal spreaders and external rail shields for long lasting durability. With the EDGE bracing system and GLAS*MARK Violator stripes on the rails, the 7400 series is built to handle the worksite and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.
Performance Overview
| Style | Size | Reach Height | Load Capacity | Type |
| Platform | 6' | 12' | 375 lbs. | Type IAA Duty Rating |

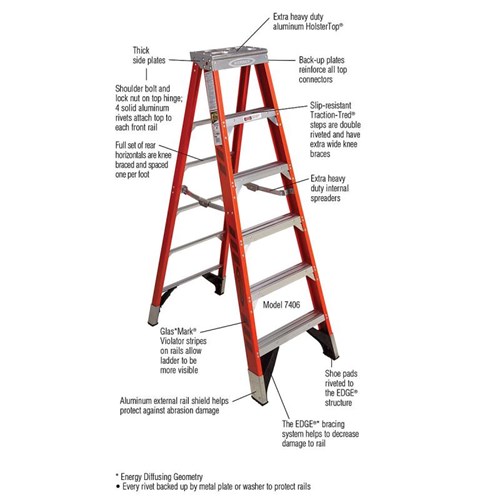

Features include:
- Extra heavy duty aluminum HolsterTop with thick side plates
- Back-up plates reinforce all top connectors
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- Slip-resistant TRACTION-TRED steps are double riveted and have extra wide knee braces
- Full set of rear horizontals are knee braced and spaced one per foot
- Extra heavy duty internal aluminum spreaders
- Aluminum external rail shield helps protect against abrasion damage
- Glas Mark Violator stripes on rails allow ladder to be more visible
- Slip-resistant foot pads attached to the EDGE structure
- The EDGE bracing system helps to decrease damage to rail
- Every rivet backed up by metal, metal plates or washers to protect rails
- Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
Interested in this item or want more information?
Hours:
Phone: (301) 773-4700
Email: orders@atlantic-supply.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension: 7-1/4" x 14-7/8"
Front Rails Dimension: 3-1/8"
Front Flange Dimension: 1-3/16"
Rear Rails Dimension: 1-7/8"
Rear Flange Dimension: 1-3/16"
Steps Dimension: 3"
Specifications
Size: 8'
Reach Height: 12'
Max. Standing Height: 5'9"
Load Capacity: 375 lbs.
Type: Type IAA Duty Rating
Performance Rating: 5 Star
Material: Fiberglass
Approx. Width: 28-1/2"
Approx. Spread: 55-1/4"
With Pail Shelf: No
Spreader Material: Aluminum
Certifications: ANSI A14.5 (2007); OSHA
Approx. Cu. Ft. Per Unit: 8.5
Approx. Shipping Wt. Lbs.: 32
Additional 400 Series Models:
| Model No. | Size | Reach Height | Max. Standing Height | Approx. Width | Approx. Spread | Approx. Cu. Ft. Per Unit |
| 7403 | 3' | 7' | 1' | 19-3/4" | 24-3/8" | 2.5 |
| 7404 | 4' | 8' | 1'11" | 21-1/2" | 30-1/2" | 3.5 |
| 7405 | 5' | 9' | 2'10" | 23-1/4" | 36-3/4" | 4.6 |
| 7406 | 6' | 10' | 3'10" | 25" | 42-7/8" | 5.8 |
| 7407 | 7' | 11' | 4'9" | 26-3/4" | 49" | 7.1 |
| 7408 | 8' | 12' | 5'9" | 28-1/2" | 55-1/4" | 8.5 |
| 7410 | 10' | 14' | 7'8" | 32" | 67-1/2" | 11.4 |
| 7412 | 12' | 16' | 9'7" | 35-1/2" | 79-7/8" | 14.8 |
Additional Information
Manufacturer: Werner Co.
