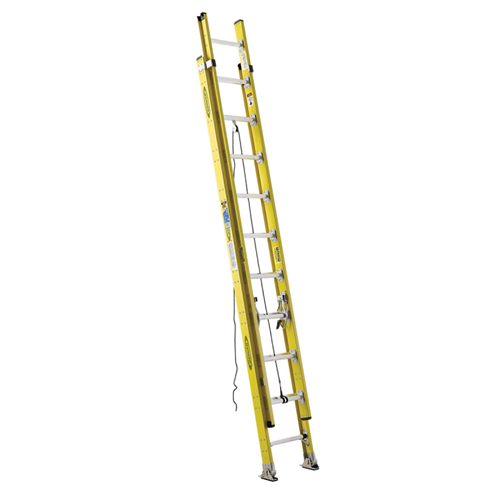

20' Type IAA Fiberglass Round Rung Extension Ladder

7120-2

Werner Co.

The 7100-2 series extension ladders are made with non-conductive fiberglass side rails featuring TRACTION-TRED slip-resistant round rungs.

Quick Overview

    Features include:

  • Exclusive ALFLO Rung Joint Means TWIST-PROOF Performance
  • 1-1/4" Slip-resistant TRACTION-TRED round rungs
  • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
  • Smooth operating pulley with polypropylene rope
  • Interlocking Side Rails with nylon coated internal rail guides on bottom of fly section increase ease of operation
  • External guides at top of base secton securely interlock rails
  • Base and fly separate easily to use base section as single ladder
  • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
  • Rugged, heavy duty extruded rung locks are spring loaded to operate smoothly
  • Pre-pierced holes for easy field installation of accessories
  • Durable rail shield and shoe bracket protects rail from damage
  • Dual action feet with slip-resistant pad and spur plate for use on hard or penetrable surfaces
  • Mar-Resistant Molded End Caps
  • Ideal for utility and telecommunication industries
  • Shoe with slip-resistant pad and spur plate
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


The 7100-2 series extension ladders are made with non-conductive fiberglass side rails featuring TRACTION-TRED slip-resistant round rungs. The top of the fly section has pre-pierced holes for easy installation of accessories. Guides at the top of the base and internal guides at bottom of fly section securely interlock the rails. The plate and rung assemblies are riveted at four points to the side rails. The base and fly sections separate easily to use base section as a single ladder. Durable rail shield and shoe brackets protect rails from damage. These durable ladders boast a duty rating of 375 pounds.


Specifications

  • Size: 20'
  • Reach Height: 19'
  • Max Working Length: 17'
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Fiberglass
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 8.7
  • Approx. Shipping Wt. Lbs.: 47

  • Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/4"
  • Fly Width: 17-3/4"

  • Base Width: 19" outside shoes

  • Additional 7100-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    7116-216'16'13'738.5
    7120-220'19'17'8.747
    7124-224'23'21'10.355
    7128-228'27'25'1263
    7132-232'31'29'13.778

    Additional Information


    Manufacturer: Werner Co.
