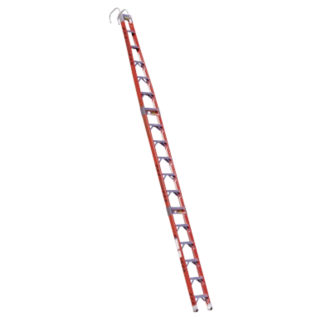

18' Type IA Fiberglass Tapered Posting Ladder

TPF18-1

Werner Co.

The TPF00-1 ladders are posting ladders with a tapered design of the rails and 1" diameter solid aluminum hooks with aluminum rail shields at the top of the ladders. The large 9 3/4" hook opening allows for easy attachment on the job. Center anchor points distribute the load to each rail, and fall protection tie-offs are located every 5 to 6' along the length of the ladder. The 3" slip-resistant TRACTION-TRED steps are double riveted and braced on the front and back. The TPF00-1 series has a duty rating of 300 pounds.

Quick Overview

    Features include:

  • 1" diameter solid aluminum hook with aluminum rail shield (large 9-3/4" hook opening allows for easy attachment)
  • 3" slip resistant Traction-Tred steps are double riveted and braced front and back
  • Center anchor points distribute force to each rail. Fall protection tie-offs located every 5' to 6' along the ladder
  • Glas*Mark violator stripes for added visibility
  • Rounded aluminum hoop shoe with ribbed rubber pad provides solid footing
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 2-7/8"
  • Base Width: 14-5/8"

  • Specifications

  • Size: 18'
  • Reach Height: 19'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating: 4 Star
  • Material: Fiberglass
  • Rung Type: Other
  • Foot Material: Slip-resistant pad
  • Number of Sections: 1
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 7.6
  • Approx. Shipping Wt. Lbs.: 48

  • Additional TPF00-1 Series Models:
    Model No.SizeReach Height Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    TPF14-114'15'637
    TPF16-116'17'6.842
    TPF18-118'19'7.648
    TPF20-120'21'8.457

    Additional Information


    Manufacturer: Werner Co.
