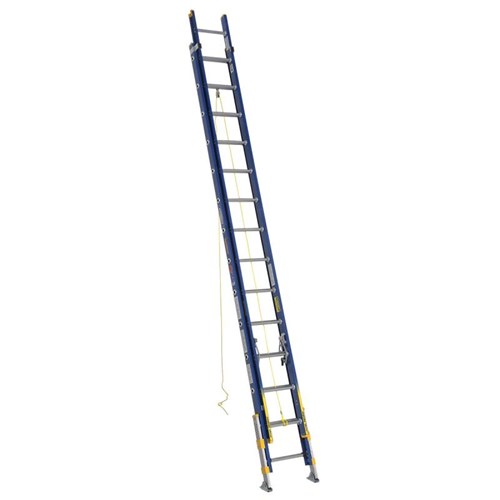

28' Type IA Fiberglass D-Rung Equalizer Extension Ladder

D8228-2EQ

Werner Co.

D8200-2EQ The Equalizer series eliminates uneven ground with the factory installed adjustable EverLevel leveling system. This system precisely adjusts in 3/8" increments up to 8 1/4", making it easy to use. The dual action feet on the ladder are for use on hard or penetrable surfaces and swivel easily. The Traction-Tred D-rungs are slip resistant. The ladder has a duty rating of 300 pounds making it durable, long lasting and able to meet the demands of the job. The exclusive ALFLO rung joint means a TWIST-PROOF performance every time, and the fiberglass rails are non-conductive.

Quick Overview

    Features include:

  • Factory installed adjustable EverLevel leveling system exceeds OSHA and ANSI requirements
  • Easily adjustable in 3/8" increments up to 8-1/4"
  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-5/8" Slip-resistant Traction-Tred D-rungs
  • Smooth operating pulley with polypropylene rope
  • Interlocking Side Rails with internal rail guides on bottom of fly section securly connect rails
  • External guides at top of base secton securely interlock rails
  • Factory installed adjustable EverLevel leveling system exceeds OSHA and ANSI requirements
  • Heavy Duty extruded rung locks are spring loaded to operate smoothly
  • Pre-pierced holes for easy field installation of accessories
  • Dual action feet for use on hard or penetrable surfaces
  • Molded Rung Braces on bottom step for increases durability
  • Mar-Resistant Molded End Cap
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-5/8"
  • Fly Width: 16"
  • Base Width: 17-3/4" outside rails, 21-7/16" outside of feet

  • Specifications

  • Size: 28'
  • Reach Height: 27'
  • Max Working Length: 25'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating: 4 Star
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 13.8
  • Approx. Shipping Wt. Lbs.: 70

  • Additional D8200-2EQ Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D8220-2EQ20'19'17'1054
    D8224-2EQ24'23'21'11.962
    D8228-2EQ28'27'25'13.870

    Additional Information


    Manufacturer: Werner Co.
