PPHD SHEATHING-TO-CFS Screw

PPHD11516B-4K

Quik Drive

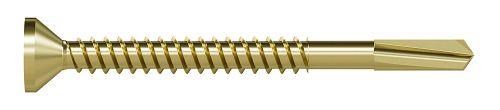

Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point. The Strong-Drive PPHD Sheathing-to-CFS screw comes in bulk for hand drive applications and collated for use in Quik Drive auto-feed screw driving systems.

Quick Overview

    Currently available in sizes #8 x 1 15/16"; #10 x 1 3/4"; #12 x 1 3/4" Larger #5 pilot point with longer flute #8 sizes have buttress threads and new dog-eared point to improve drilling through sheathing and metal #12 sizes have underhead nibs for easy countersinking 6-lobe recess for a more secure drive Yellow zinc and Quik Guard® coatings PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISA S240 and AISI S400 Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
Interested in this item or want more information?

Hours:

Phone: (301) 773-4700

Email: orders@atlantic-supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Model No. Coating/Material Screw Size Length (in.) Head Diameter (in.) Drive Type Head Type Thread Type TPI Max. Grip Length (in.) Point Type Point Size Packaging Qty. New products PPHD11516B-4K Yellow-Zinc Coated #8 1 15/16 0.323 T25 6-Lobe Flat Head Buttress Threads 17 1.034 Pilot Point 5 4000 PPHD134B1016-4K Yellow-Zinc Coated #10 1 3/4 0.323 T25 6-Lobe Flat Head Fine Threads 16 0.793 Pilot Point 5 4000 PPHDQ11516B-4K Quik Guard® Coating #8 1 15/16 0.323 T25 6-Lobe Flat Head Buttress Threads 17 1.034 Pilot Point 5 4000 PPHDQ134B1016-4K Quik Guard® Coating #10 1 3/4 0.323 T25 6-Lobe Flat Head Fine Threads 16 0.793 Pilot Point 5 4000 PPHDQ134B1214-4K Quik Guard® Coating #12 1 3/4 0.460 T25 6-Lobe Flat Head with Nibs Fine Threads 14 0.766 Pilot Point 5 4000

Additional Information


Manufacturer: Quik Drive
